25KV URD CABLE Medium Voltage Power Cables ICEA S-94-649 Aluminum / Copper Full Neutral

Product Categories
HENAN UME CABLE CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

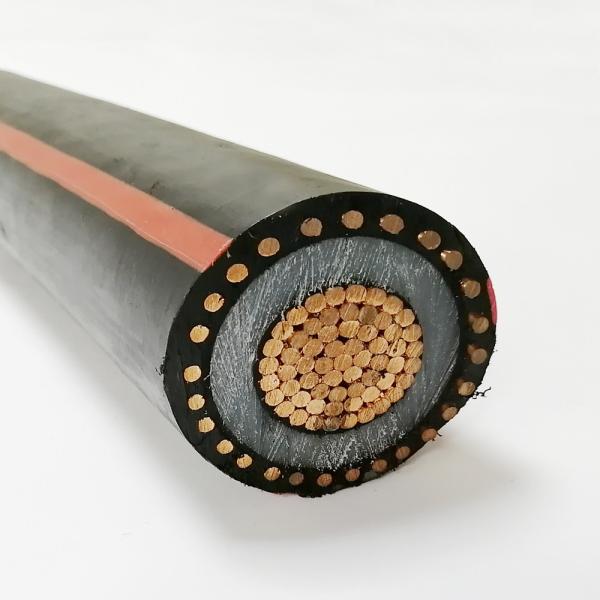

25KV URD CABLE Medium Voltage Power Cables ICEA S-94-649 Aluminum / Copper Full Neutral

  • 1
  • 2
  • 3

Brand Name : UMEC

Model Number : URD

Certification : ISO CE

Place of Origin : CHINA

MOQ : 100M

Payment Terms : L/C, T/T

Delivery Time : 5-30days

Packaging Details : Export drum

Color : Black

Insulated : TRXLPE

Wire Core Material : Copper

Sample : Free

Armor : no

Voltage Rating : 25KV

Contact Now

Application
These cables are used in primary distribution network systems in residential, commercial and industrial areas. They can be used in conduit pipes, underground ducts or directly buried.

Construction
● Conductor :Copper or aluminum, circular compressed or compacted stranded conductors
● Conductor screen: Non-metallic,semi-conducting compound
● Insulation: 100% and 133% and 173% insulation level, cross-linked polyethylene XLPE or tree retardant cross-linked polyethylene insulation(TRXLPE)
● Insulation screen:Non-metallic,semi-conducting compound
● Metallic screen: Copper tape
● Outer sheath: Sunlight resistant, Polyvinyl chloride PVC or Polyethylene (PE) or Polyolefin (PO)

Specification
ASTM B 8 Standard Specification for Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft
ASTM B 231 Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
ASTM B 496 Compact Round Concentric-Lay-Stranded Copper Conductors.
ASTM B 400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors.
ANSI/ICEA S-94-649 Concentric Neutral Cables Rated 5 Through 46 kV

Chaircteritics
● Maximum conductor temperature in normal operation: 90˚C.
● Emergency Overload Temperature: Shall not exceed 130˚C.
● Short Circuit Temperature ( 5 seconds maximum duration ): Shall not exceed 250˚C.
● Product manufacturing options:
● Blocking elements against the penetration of water in the metallic part for humid and wet environments.

Conductor Full Neutral 100% Insulation Level 133% Insulation Level
Size Area Nominal Diameter No. of wires Size Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight Nominal Insulation Thickness Nominal Sheath Thickness Approx. Overall Diameter Approx. Weight
AWG/kcmil mm² mm AWG mm mm mm kg/km mm mm mm kg/km
Copper Conductor
2 33.6 6.81 16 14 4.45 2.03 27.6 1143 5.59 2.03 30.1 1248
1 42.4 7.59 13 12 4.45 2.03 29.2 1345 5.59 2.03 31.8 1453
1/0 53.5 8.53 16 12 4.45 2.03 30.2 1567 5.59 2.03 32.7 1679
2/0 67.4 9.55 13 10 4.45 2.03 32.3 1883 5.59 2.03 34.8 1998
3/0 85 10.7 16 10 4.45 2.03 33.5 2229 5.59 2.03 36.0 2349
4/0 107 12.1 20 10 4.45 2.03 34.8 2668 5.59 2.03 37.3 2793
250 127 13.2 25 10 4.45 2.03 35.9 3128 5.59 2.03 38.4 3256
Aluminum Conductor
2 33.6 6.81 10 14 4.45 2.03 27.6 812 5.59 2.03 30.1 917
1 42.4 7.59 13 14 4.45 2.03 28.4 919 5.59 2.03 30.9 1027
1/0 53.5 8.53 16 14 4.45 2.03 29.3 1036 5.59 2.03 31.8 1148
2/0 67.4 9.55 13 12 4.45 2.03 31.2 1204 5.59 2.03 33.7 1319
3/0 85 10.7 16 12 4.45 2.03 32.3 1380 5.59 2.03 34.9 1500
4/0 107 12.1 13 10 4.45 2.03 34.8 1642 5.59 2.03 37.3 1767
250 127 13.2 16 10 4.45 2.03 35.9 1877 5.59 2.03 38.4 2006
350 177 15.6 16 9 4.45 2.03 39.0 2304 5.59 2.03 42.1 2482

Product Tags:

Full Neutral Medium Voltage Power Cables



25KV Medium Voltage Power Cables



URD Medium Voltage Power Cables


Wholesale 25KV URD CABLE Medium Voltage Power Cables ICEA S-94-649 Aluminum / Copper Full Neutral from china suppliers
